One lesson two Exercises with Packet Tracer

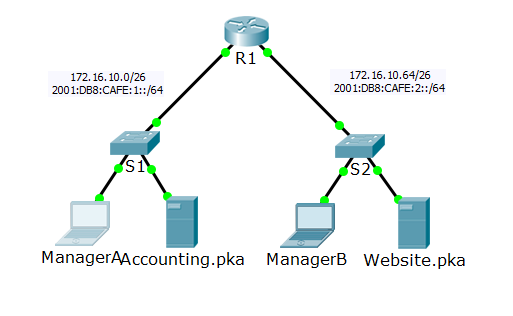

Exercise 7.4.1.2 - Skills Integration Challange

In this exercise you have to configure the last few parts of a network for two restaurants, that share one connection. The addressing table is given. Everything should be connected in the end.
To set the IP-addresses on the Switch you need to go into the conf t mode, go into the int vlan 1 and then set the IP-address like on the router.
To set the default gateway you need (config)#ip default-gateway 172.16.10.1

8.1.4.7. Subnetting Scenario 1

In this exercise you need to setup 5 subnets (4 for the switches, one for the WAN). Therefor you need three bits for subnetting and need /27 address. With this knowledge and your knowledge about subnetting you are able to fill in the addressing table below.
We can answer the questions from Step 1:
a.)Based on the topology, how many subnets are needed?
5
b.)How many bits must be borrowed to support the number of subnets in the topology table?
3
c.)How many subnets does this create?
There can be up to 8 subnets.
d.)How many usable hosts does this create per subnet?
30
